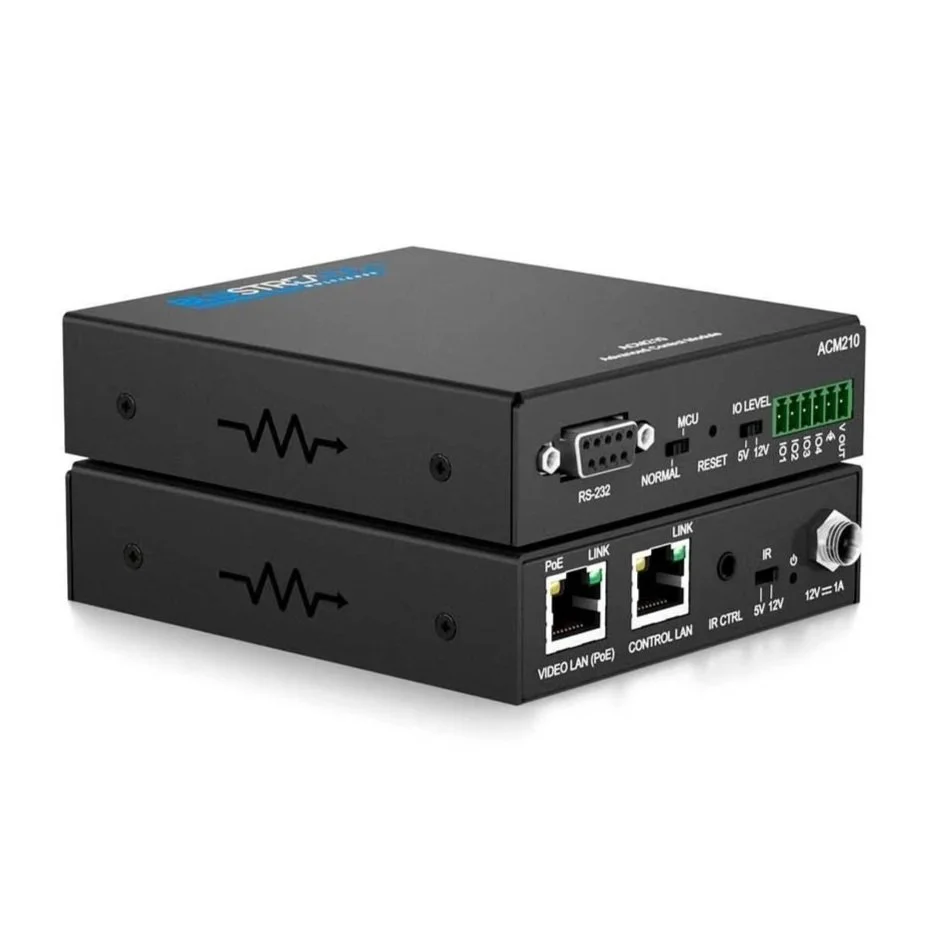

ACM210

$649.99

This UHD Multicast distribution platform allows distribution of HDMI video over a 1Gb managed network. The ACM210 Advanced Control Module allows for advanced third party control of our IP50HD, IP200UHD, IP250UHD, IP300UHD and IP350UHD Multicast systems using TCP/IP, RS-232 and IR.

The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.

Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

This UHD Multicast distribution platform allows distribution of HDMI video over a 1Gb managed network. The ACM210 Advanced Control Module allows for advanced third party control of our IP50HD, IP200UHD, IP250UHD, IP300UHD and IP350UHD Multicast systems using TCP/IP, RS-232 and IR.

The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.

Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Features:

• Web interface module for configuration and control of IP300UHD and IP350UHD Blustream Multicast systems
• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
• Auto system configuration
• 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
   - Better system performance as network traffic is separated
   - No advanced network setup required
   - Independent IP address per LAN connection
   - Allows simplified TCP/IP control of Multicast system
• RS-232 integration for control of Multicast system
• IR integration for control of Multicast system
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should Ethernet switch not support PoE
• Support for iOS and Android App control
• 3rd Party drivers available for major control brands

Specs:

• Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)
• RS-232 Serial Port: 1 x DB-9 female
• GPIO Port: 1 x 6-Pin Phoenix connector
• IR Input Port: 1 x 3.5mm stereo jack
• PoE consumption: 4.0W (typical), 4.5W (max load)
• Dimensions (W x D x H ): 96mm x 110mm x 26mm
• Shipping Weight: 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
